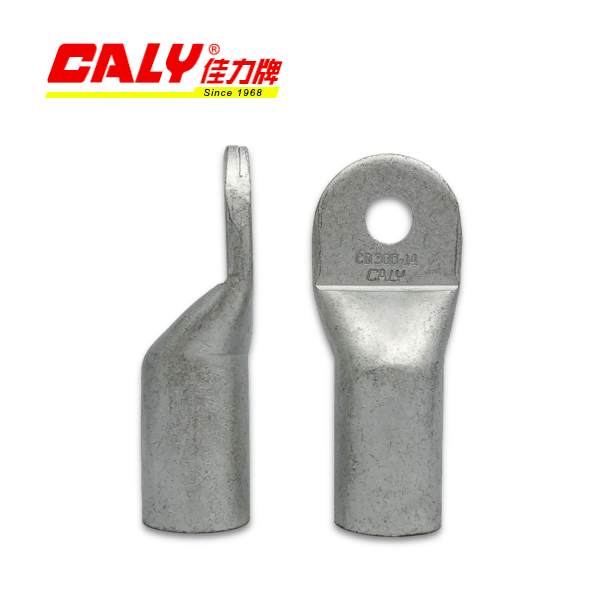

Copper Lug Terminal / Electrical Lug, DIN 46235 Standard

CD

Yeuen Young Electrical Co., Ltd. is specialized in the research, development and manufacture variety of high and low voltage lug terminals and electrical lug for electrical equipment and wiring materials. Contact us for more information about the copper lug met DIN 46235 standard.


The copper lug is made of copper tube C1100. Also, its specification size meets DIN46235 Standard. With the traits of High Conductivity & Applicable to High and Low Voltage Distribution Equipment.


Specification
Item No.
ød2
B
L
F
K
E
C
I
e
øD
ød
t
R
CD 6-5
5.3
.209
8.5
.335
25.0
.984
6.3
.248
3.2
.126
10.5
.413
5.0
.197
20.0
.787
0.5
0.02
5.5
.217
3.8
.150
0.85
.033
6.0
.236
CD 6-6
6.4
.252
9.0
.354
28.0
1.102
8.3
.327
6.0
.236
22.0
.866
CD 6-8
4.8
.311
12.5
.492
32.0
1.260
10.3
.406
8.0
.315
24.0
.945
8.0
0.315
CD 10-5
5.3
.209
9.0
.354
27.0
1.063
6.7
.264
3.8
.150
6.0
.236
21.0
.827
6.2
.244
4.5
.177
6.0
.236
CD 10-6
6.4
.252
9.0
.354
29.0
1.142
8.7
.343
6.0
.236
23.0
.906
CD 10-8
4.8
.311
12.5
.492
33.0
1.299
10.7
.421
8.0
.315
25.0
.984
8.0
.315
CD 16-5
5.3
.209
12.0
.472
38.5
1.516
7.0
.276
4.6
.181
20.5
.807
6.4
.252
32.1
1.264
0.8
.031
8.5
.335
5.5
.217
1.5
.059
CD 16-6
6.4
.252
13.0
.512
41.5
1.634
9.0
.354
7.4
.291
34.1
1.343
8.5
.335
CD 16-8
4.8
.311
13.0
.512
44.5
1.752
10.9
.429
8.5
.335
36.0
1.417
CD 16-10
10.5
.413
16.5
.650
47.5
1.870
12.4
.488
10.0
.394
37.5
1.476
10.0
.394
CD 25-6
6.4
.252
14.2
.559
43.0
1.693
9.0
.354
5.9
.232
7.6
.299
35.4
1.394
10.0
.394
7.0
.276
9.0
.354
CD 25-8
4.8
.311
15.5
.610
47.0
1.850
11.1
.437
9.5
.374
37.5
1.476
9.5
.374
CD 25-10
10.5
.413
16.5
.650
49.5
1.949
12.6
.496
10.5
.413
39.0
1.535
10.5
.413
CD 25-12
13
.512
18.5
.728
52.0
2.047
13.6
.535
12
.472
40.0
1.575
12.0
.472
CD 35-6
6.4
.252
17.5
.689
45.0
1.772
9.5
.374
6.9
.272
8.1
.319
36.9
1.453
0.9
.035
12.7
.500
8.2
.323
2.25
.089
11.0
.433
CD 35-8
4.8
.311
48.5
1.909
11.5
.453
9.6
.378
38.9
1.531
CD 35-10
10.5
.413
18.5
.728
50.5
1.988
12.6
.496
10.5
.413
40.0
1.575
11.5
.453
CD 35-12
13
.512
20.5
.807
53.5
2.106
13.6
.535
12.5
.492
41.0
1.614
12.5
.492
CD 50-8
4.8
.311
20.5
.807
58.5
2.303
11.5
.453
8.4
.331
28.5
1.122
10.1
.398
48.4
1.906
1.0
.039
14.5
.571
10.0
.394
CD 50-10
10.5
.413
21.5
.846
61.5
2.421
13.0
.512
11.6
.457
49.9
1.965
13.0
.512
CD 50-12
13
.512
23.5
.925
64.5
2.539
14.0
.551
13.6
.535
50.9
2.004
14.0
.551
CD 70-8
4.8
.311
61.0
2.402
11.9
.469
9.6
.378
11.0
.433
50.0
1.969
1.7
.067
16.5
.650
11.5
.453
2.5
.098
14.5
.571
CD 70-10
10.5
.413
64.0
2.52
13.4
.528
12.5
.492
51.5
2.028
CD 70-12
13
.512
65.5
2.579
14.4
.567
13.0
.512
52.5
2.028
Tolerance
±0.5
±1.5
±2.0
±1.5
±0.5
±1.5
±0.8
±0.8
±0.3
±0.5
±0.5
±0.5
±0.5
**There are more specification, please contact us for more detailed information if needed**

Certification
